Welcome to our Free Download/New Products Page!
(updated March 17, 2007)

Download Page - Latest Product Information and Software


Software, 7-Port 3.0KV Isolated RS485 Repeaters, Cat-5 Converters. Scroll down for the latest info.



Extended temperature range (-40C to +85C) units, for many models, will be available soon.
The IRS422HV (RS422/RS485) is now available (-40C to +85C, 3.0Kv isolation).

Download the data sheet for the IRS422HV:

IRS422HVrevB.pdf (166k, 3.0KV Isolated RS422/RS485 Converter with extended temperature range) REV. B
IRS422HVrevA.pdf (160k, 3.0KV Isolated RS422/RS485 Converter with extended temperature range) REV. A


Let me spin a VERY large Ethernet I/O network for you!

R. E. Smith I/O Commander:

The I/O Commander is designed to communicate, test and control our line of digital and analog I/O products. However, due to its flexible nature, it can also be used as a general purpose terminal emulator (color coded TXD/RXD, split screen modes, and 32/1024 "hot-keys") and, as a drum sequencer. The terminal emulator now supports COM1 through COMX, and data rates from 300bps to 921.6Kbps. Now with flow control and parity.  Same low cost: Free

Download RescomdrV5.1.exe software for Windows 95, 98, ME, 2000, XP and NT (Does NOT require installation).

Download: RES-IO-COMMANDER.zip (1.4 MB zip file, Newer, Faster, Smaller, with enhanced features, NO installation required! 11-11-06).

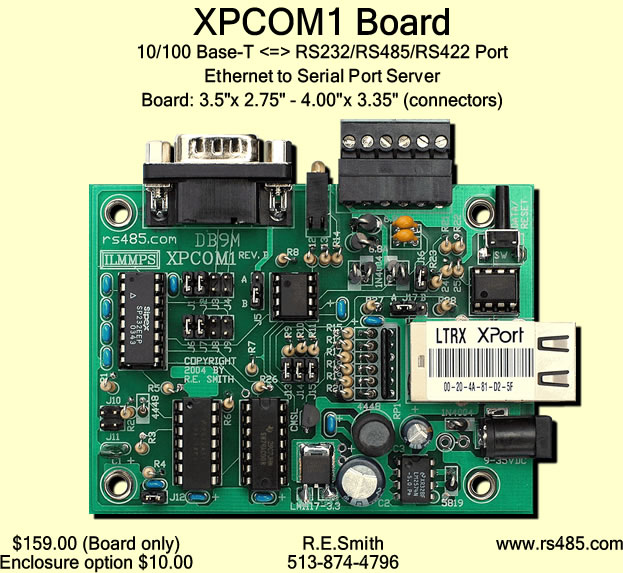

R. E. Smith XPCOM1 Ethernet 10/100-T Serial Port Server:

Download Product CD for latest information: XPCOM1-XPCOM232-RevD-CD-FOLDER.zip  (11.6M)


Call for additional information.

We would appreciate any comments or suggestions during this development phase.

For information concerning the ESPSX3: ESPSX3information


R. E. Smith SuperCas Software (for our line of Code Activated Switches):

Version 2P1a (8-12-2001) of the "R.E. Smith SuperCas" software is now available for download. We have several new products that allow "networking" RS232 devices over an RS485/RS422/Fiber Optic/Ethernet Serial Server "backbone." These Code Activated Switches are addressable and very flexible. The CAS24 is a single RS232 switch port and, the ICASX4 has 4 addressable RS232 switched ports with an isolated RS485 "backbone." The FCASX3 has 2 addressable RS232 switched ports and, one switched port that can be RS232 or Isolated RS485 and operates over a Fiber Optic "backbone." The CAS232X8 is a 1 of 8 RS232 software selectable switch (connect 8 RS232 devices to one RS242 port on your PC). Please call for additional information. The ESPSX3 is an Ethernet Serial Port Server with 3 buffered RS232 com ports (one port can be Isolated RS485/RS422). Use this software for all CAS products.

Download: SuperCASV2P1b.exe (698k, NO installation required!)


R. E. Smith CAS24 Software (for Code Activated Switch RS485/422 <=> RS232):

Original version (3-3-2001) of the "R.E. Smith CAS24" software is now available for download. The CAS24 can be used to network several (250+) RS232 devices over an RS485/RS422 network. Use the SuperCAS version above to take advantage of all the features of the CAS24 board. For reference only.

Download: CAS24.exe (552k, NO installation required!), and : CAS24.pdf (Manual, 791k)


RS232<=>RS485<=>RS422 Converters Spread Sheet (Selection Guide):

Download basic information about our Converters and Accessories in .pdf format.

Download:

CONVERTERS.pdf (25k, Converters Spread Sheet)


Model ICSX7HV, 3.0KV ISOLATED 7-PORT RS485 REPEATER with RS232 PORT:
(Isolated Communications Spider - "Let me spin a very large RS485 network for you!")

This unit can be connected to a computers' RS232 port, and distribute RS485 via 7 Isolated Ports to form large/robust networks. Units can be cascaded for very large RS485 multi-drop (2-wire, half-duplex) networks.

Download:

ICSX7HV.pdf (69k, ICSX7HV, 3.0KV Isolated RS232<=>RS485(X7) Repeater, Schematic)

ICSX7HVSS.pdf (241k, ICSX7HV, 3.0KV Isolated RS232<=>RS485(X7) Repeater, Physical Drawing)



R. E. Smith CAT-5 Converters(SS Series) and RS232 "Extension Cords":

The SS (super simple) series of Converters have a minimum number of configuration jumpers and, in general will allow RS485/RS422 connections using Category-5 cable. Some models can even supply power to a remote converter over the Cat-5 cable. These units should NOT be connected to the Ethernet.

Download:

SSACXXmanual.pdf (28k, General Information/Manual for SS Series of Converters, RS232 "Extension Cord" Info.)

SSAC24T.pdf (80k, Automatic RS232<=>RS485 Converter with RJ12/Removable Terminal Strip)

SSAC24R.pdf (93k, Automatic RS232<=>RS485 Converter with RJ45/CAT-5)

SSAC44T.pdf (89k, Automatic RS232<=>RS485/RS422 Converter with RJ12/Removable Terminal Strip)

DB9CAT.pdf (72k, Automatic RS232<=>RS485/RS422 Converter with DB9M and RJ45/CAT-5)

HUBCAT.pdf (77k, Four Port Connection Hub for RS485/RS422 with RJ45/CAT-5)

SSC232F.pdf (95k, Full-Duplex RS232 to RS422 "Extension Cord" with RJ45/CAT-5)

SSC232M.pdf (95k, Full-Duplex RS232 to RS422 "Extension Cord" with RJ45/CAT-5)


Model IHV24XT (3.0KV) and IRSFC24XT (1.5KV) Opto/Xformer Isolated Intelligent RS232<=> RS485 Converters (Replacements for the Model IRSFC24T):

The Model IHV24XT Converter is an "industrial strength" unit with Intelligent Detection and Display of Internal/External Error Conditions. This converter provides an onboard microprocessor and 5 LED indicators to help identify problems during installation and normal operation. This unit offers dual transient protection in addition to the 3.0KV isolation. The unit operates from 9-35VDC. Operating speed is 300-115.2Kbps with a "Fast Automatic Transmitt Enable Circuit." The IHV24XT will also operate as a "standard" converter with display of data activity (TXD/RXD) on the RS485 side of the interface. Call for additional information. Units are available off-the shelf. If you can find a more robust/flexible, "high speed" automatic converter, than the IHV24XT please let us know!

Download:

IHV24XT.pdf (131k, IHV24XT, 3.0KV Isolated Intelligent RS232<=>RS485 Converter Schematic )

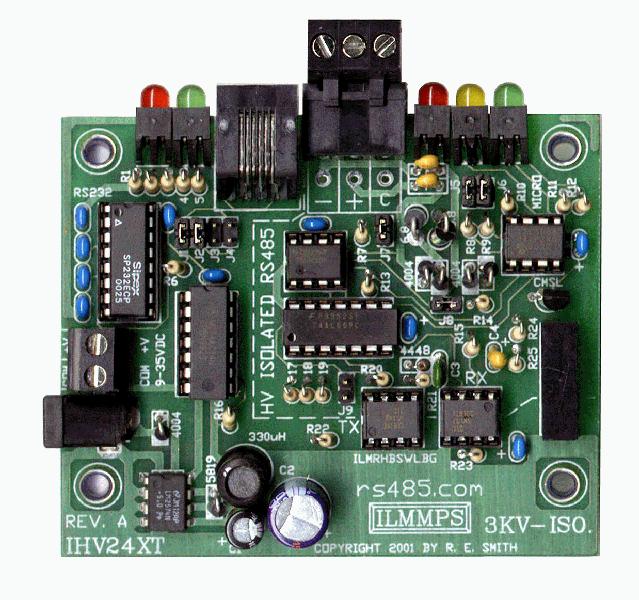

IHV24XTpcb.jpg (79k, Photo of IHV24XT, 3.0KV Isolated Intelligent RS232<=>RS485 Converter, Circuit Board)

IRSFC24XT.pdf (138k, IRSFC24XT, 1.5KV Isolated Intelligent RS232<=>RS485 Converter Schematic)

IRSFC24T.pdf (131k, IRSFC24T, 1.5KV Isolated Intelligent RS232<=>RS485 Converter Schematic)

IRSFC24XTmanual.pdf (206k, New Product Manual for the IRSFC24XT and IHV24XT Converters with Software Selection)


Model USB232 Converter for USB <=> RS232 (DB9M connector): This product is NOT available.

Model USB232 will convert USB <=>RS232 at data rates up to 230.4Kbps. Call for more information.

Download:



We are currently working on an Ethernet/Internet I/O Unit with 24 opto-isolated inputs and
24 form-c relay outputs, in a rack mount chassis (1.75"). Remote I/O control from your computer
or use a pair of units in stand-alone mode over the Ethernet/Internet. Call for more information.


Download
preliminary drawing for the RIOC48L-1.75 rack mounted Ethernet/Internet I/O unit (Telco Type-2):

RIOC48L.pdf (137k, Ethernet/Internet Remote/Local I/O unit, Internet I/O around the world)


Model FCASX3 Fiber Optic "Backbone" 3-Port (RS232/RS485) Code Activated Switch:

The FCASX3 is a Fiber Octics Repeater, with two RS232 and one RS232/RS485 Code Activated Switch ports. Ports can be selected by sending a command over the Fiber Channel. After selecting the desired port, data can be sent/received from the target port. Call for additional information.

Download:

FCASX3manual.pdf (354k, Manual for FCASX3, Fiber Optic 3-Port Code Activated Switch)

FCASX3cpu.pdf (98k, FCASX3, Fiber Optic 3-Port Code Activated Switch, CPU/RS232 Schematic)

FCASX3485.pdf (68k, FCASX3, Fiber Optic 3-Port Code Activated Switch, Isolated RS485 Port Schematic)

FCASX3fr.pdf (61k, FCASX3, Fiber Optic 3-Port Code Activated Switch, Fiber Optic Repeater Schematic)

FCASX3ss.pdf (187k, FCASX3, Fiber Optic 3-Port Code Activated Switch, Physical Drawing)

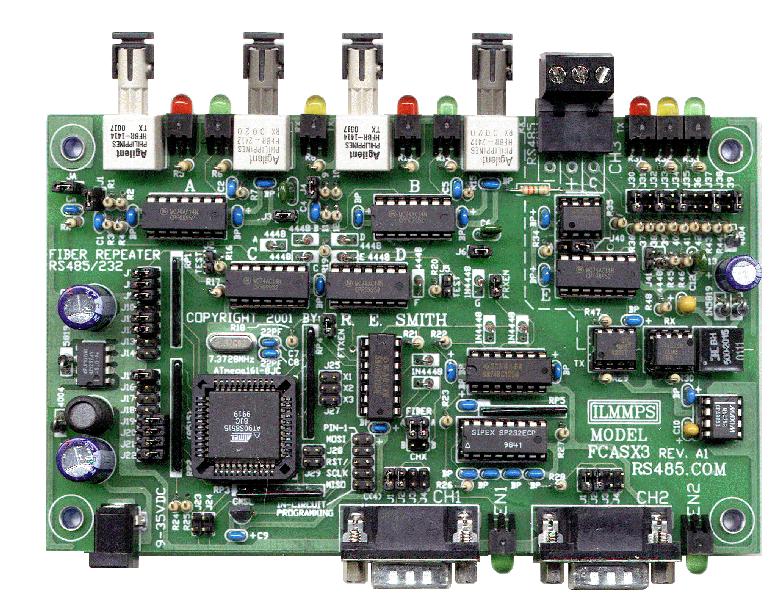

FCASX3pcb.jpg (127k, Photo of FCASX3, Fiber Optic 3-Port Code Activated Switch, Circuit Board)
