General Description:
Microprocessor/crystal-controlled, dual opto-isolated (1500 VDC, 1 SEC) "automatic
data-direction control" converter (RS232, RS485, RS422, TTL/CMOS, 9-35 VDC operation,
or can be powered off the DIN bus.)
| Download: | ||
|
DISODINA.pdf | Converter schematic-A |
|
DISODINB.pdf | Converter schematic-B |
|
DISODINC.pdf | Converter schematic-C |
|
DISODINS.pdf | Physical description |

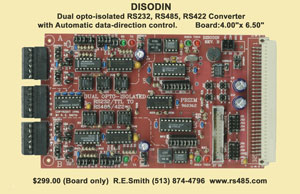

Click on this image for a larger view:
 |
